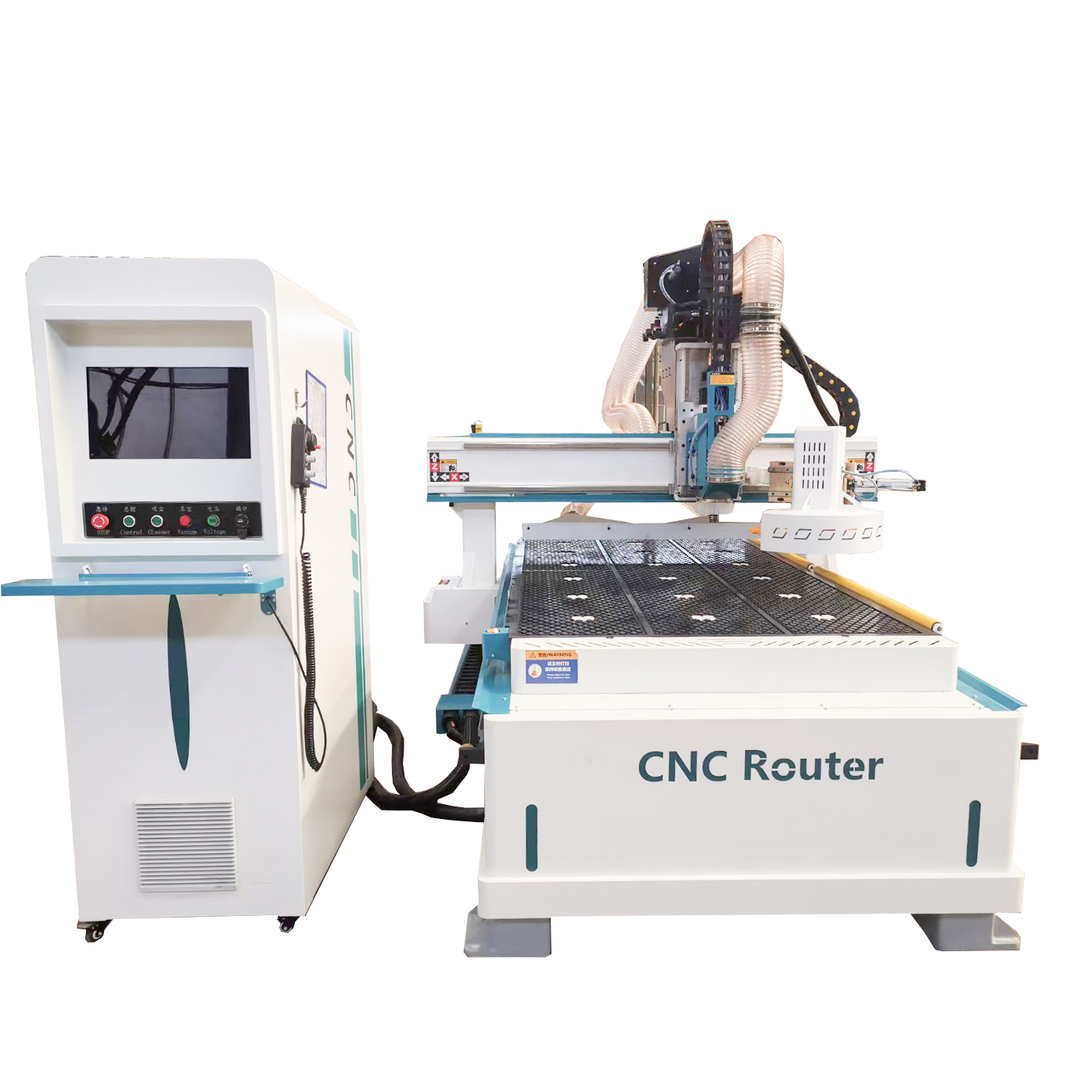

ATC CNC Router GS-ATC1325D

inquiry

SPECIFICATION
WORKING AREA	1300mm×2500mmx300mm
REPEATABILITY	0.04/300mm
SPINDLE POWER	9KWAIR COOLING)
GUIDE WAY	LINEAR (HIWIN)
ROUTER BITS DIAMETER	Φ3.175 Φ6Φ12.7
POWER	AC380V/50HZ
MOVING SPEED	55m/min
WORKING SPEED	40m/min
TRANSMISSION	X Y AXIS HELICAL RACK Z AXIS BALL SCREW
Spindle rotating speed	19000rpm
Command	G code.u00.mmg*plt
CONTROLLER	SYNTEC
MOTOR	SERVO MOTOR (YASKAWA)
ACCESSORY	VACUUM SYSTEM
SUITABLE INDUSTRY	24 tools chang automatic for woodworking,metal process.

◆Adopts thick steel pipe welded lathe bed, the special heat-treatment ensures minimum distortion, excellent rigidity and vigorous strength.

◆High precision TBI Gridding Grade ball screw transmission and Japan YASKAWA servo system ensures high accuracy, fast speed and good stability.

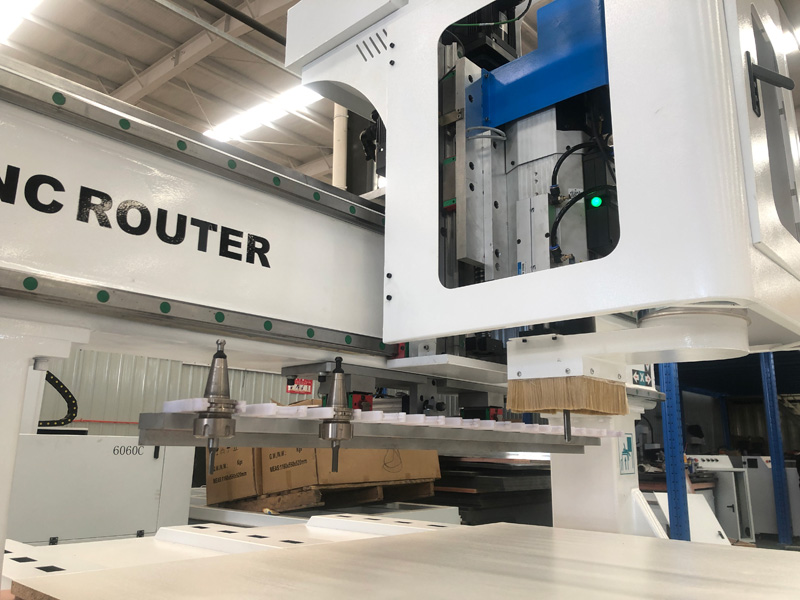

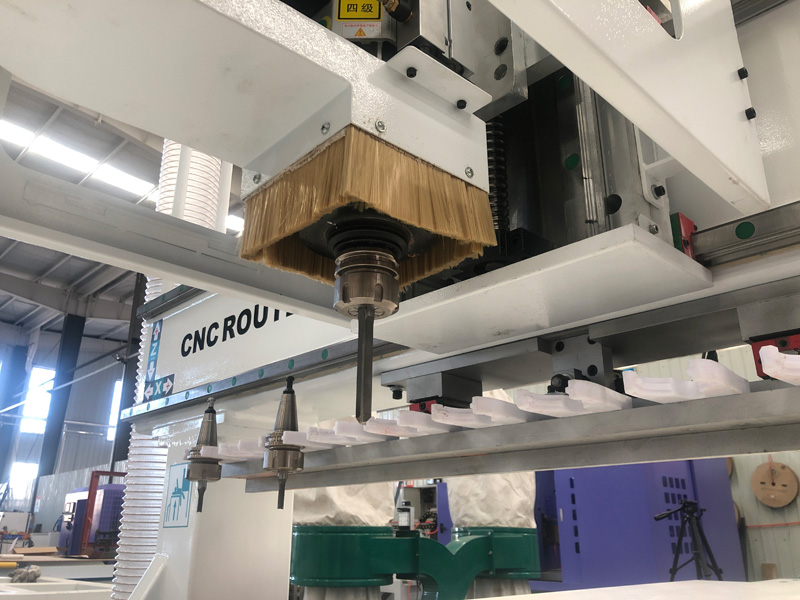

◆2 set disk tools changer with 24 different tools.

◆6Kw Italy import air cooling spindle with auto tools changing.

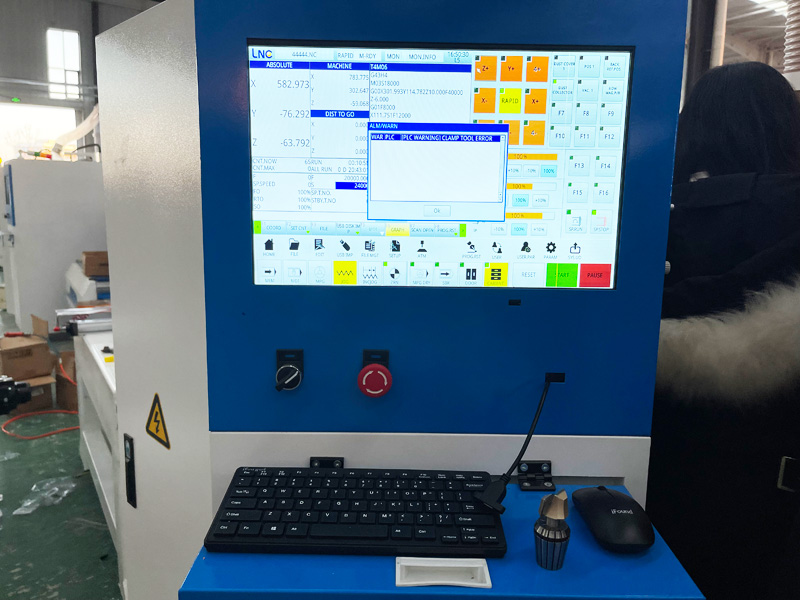

◆Original Taiwan Syntec system with hand wheel, convenient for positioning operation.

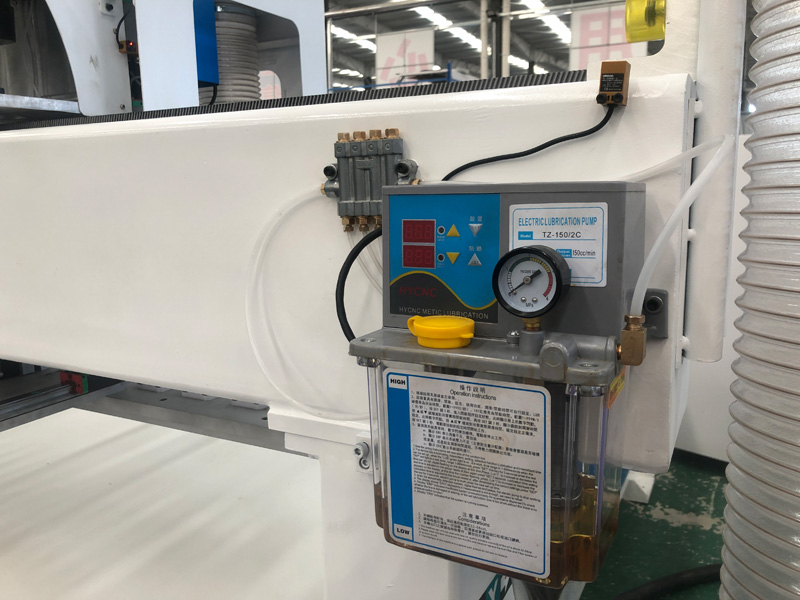

◆Sprayer lubrication system and automatic lubrication system optional.

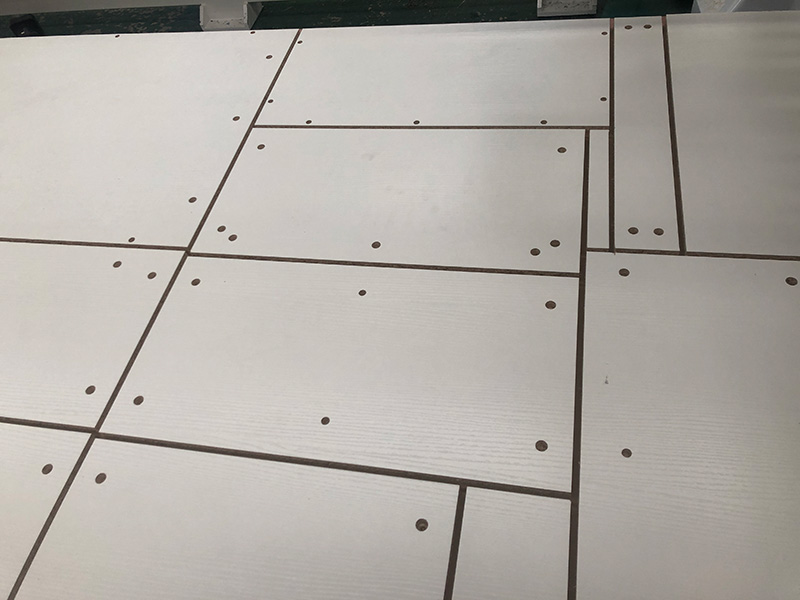

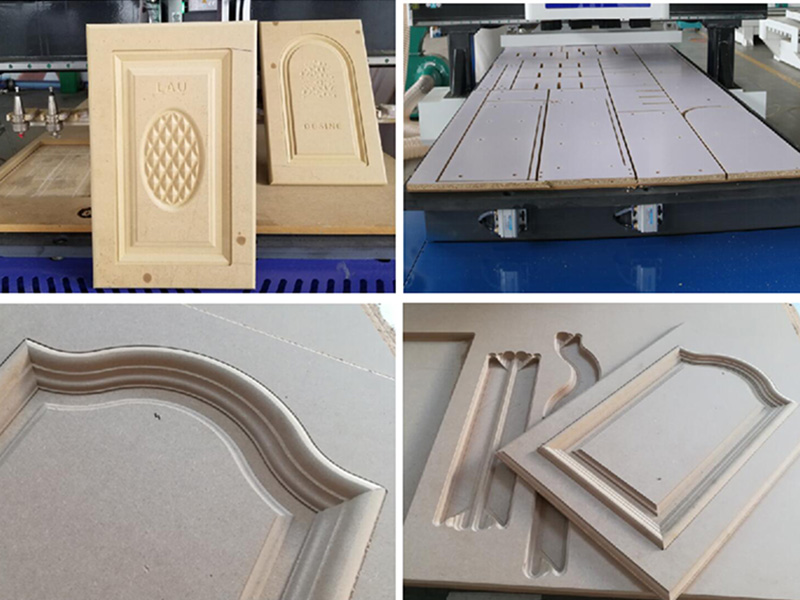

Mainly used for acrylic mini letter and wood panel cutting.
